NV300 Features





















NV340











NV344









NV347

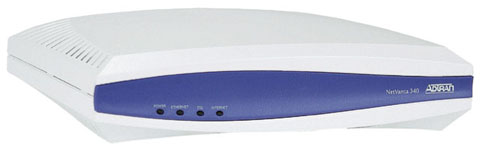

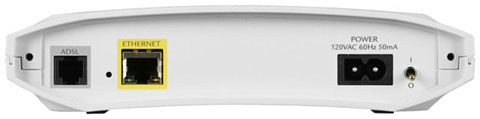

The NetVanta 340 has the following features:

• IP access router for ADSL, ADSL2, ADSL2+ networks
• Supports ATM, PPP over ATM, and PPPoE over ATM
• ADSL2+ line rates up to 25 Mbps
• Standards-based eBGP/iBGP, OSPF, RIP, static routing and bridging protocols
• Integral stateful inspection firewall protects against Denial of Service (DoS) attacks
• IPSec VPN upgrade supporting DES/3DES/AES encryption
• Compatible with ADTRAN’s other VPN equipped NetVanta products
• Recognizable Command Line Interface (CLI) and user-friendly, Web-based Graphical User Interface (GUI)
• Quality of Service (QoS) with low latency queuing (LLQ), weighted fair queuing (WFQ), class-based weighted fair queuing, and DiffServ marking
• Built-in alert and logging mechanisms
• Network Address Translation (NAT/NAPT), 1:1 NAT port translation, and NAT Traversal version 2
• NAT-compliant SIP ALG
• DHCP client, server, and relay
• XAUTH including RADIUS, RSA SecurID, and TACACS+
• Flash memory supports dual images of AOS
• Firmware upgradeable using TFTP or FTP
• Telnet, HTTP, SSH, SSL, or SNMP management options
• 1.63-inch H x 7.5-inch W x 5.5-inch D
• AC power (120 VAC, 60 Hz, 6 W)

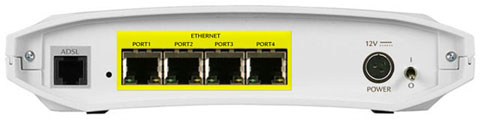

Additional features of the NetVanta 344:

• Integral 4-port 10/100 Ethernet switch with VLAN tagging/trunking capability
• DC power (12 VDC, 800 mA, 6 W)

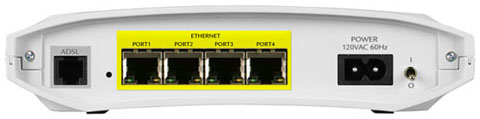

Additional features of the NetVanta 347:

• Integral 4-port 10/100 Ethernet switch with VLAN tagging/trunking capability
• AC power (120 VAC, 60 Hz, 7 W)
