NetVanta Documentation

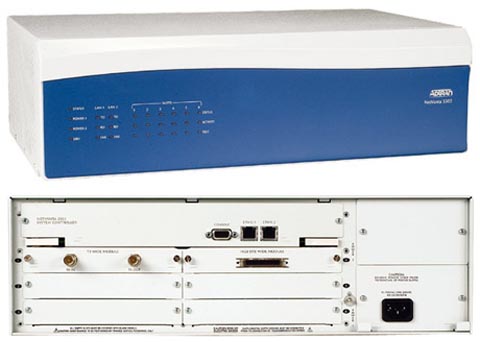

NV5305 Features







The NetVanta 5305 has the following features:

  • Six wide-slot, dual-Ethernet modular IP router
  • Feature-rich ADTRAN Operating System (AOS)
  • Recognizable Command Line Interface (CLI) and user-friendly, web-based Graphical User Interface (GUI)
  • Modular IP access routers for Frame Relay, Multilink Frame Relay, PPP, Multilink PPP, or PPPoE networks
  • Standards-based BGP, OSPF, RIP, static routing, and bridging protocols
  • Integral stateful inspection firewall protects against Denial of Service (DoS) attempts
  • Interchangeable Network Interface Modules (NIMs) with integral DSU/CSU
  • Unchannelized T3, Octal T1/E1, and HSSI wide modules
  • Auto-sensing 10/100BaseT interface(s)
  • Dial backup to any PPP-compliant device
  • IPSec VPN upgrade supporting DES/3DES/AES encryption
  • Compatible with ADTRAN’s other VPN-equipped NetVanta products
  • Quality of Service (QoS) with class-based weighted fair queuing (CBWFQ), low latency queuing (LLQ), weighted fair queuing (WFQ), and DiffServ marking
  • Built-in alert and logging mechanisms
  • Network Address Translation (NAT/NAPT) and NAT Traversal version 2
  • NAT-compatible SIP ALG
  • DHCP client, server, and relay
  • XAUTH including RADIUS and RSA SecurID
  • Flash memory supports dual images of AOS
  • TFTP, FTP, XMODEM for firmware upgrades and maintenance updates
  • Telnet, HTTP, SSH, SSL, craft/console port, or SNMP management options
  • Field-upgradable, remotely configurable interface modules
  • Supports up to two unchannelized T3s of bandwidth
  • Dual 10/100BaseT Ethernet ports support LAN segmentation or DMZ applications
  • 3U, 19-inch rackmount metal enclosure
  • 5.25-inch H x 17.5-inch W x 10.25-inch D
  • Auto-ranging power (100 to 250 VAC, 50/60 Hz, 325 watts)
  • Redundant AC power supply (optional)
  • 2,000 IPSec VPN tunnels (optional)
