NV7100 Features











The NetVanta 7100 has the following features:

• All-in-one IP PBX, integral SIP gateway, IP access router, Power over Ethernet (PoE) switch, and security/firewall/VPN
• Full-featured IP router supporting up to 3 T1s for data and Internet access
• Managed, 24-port PoE (802.3af) switch
• Stateful inspection firewall for network security
• Up to 10 analog POTS interfaces with remote survivability
• Supports IP, analog, and digital phones/phone systems, fax machines and modems, Wireless Access Points (WAPs)
• Dynamic bandwidth allocation affords more efficient utilization
• Quality of Service (QoS) for delay sensitive traffic
• Standards-based routing/switching protocols based on the widely deployed NetVanta Series
• Performance-enhanced platform
• Two modular options slots compatible with NetVanta Network Interface Modules (NIMs) and Voice Interface Modules (VIMs)
• Includes two FXS and two FXO analog interfaces
• 24-port managed Layer 2 Fast Ethernet switch
• Dual combination Gigabit Ethernet/SFP module slot for high-speed uplink or stacking requirements
• CompactFlash® slot for downloading configuration files and new firmware
• IPSec VPN for secure corporate connectivity across the Internet
• VPN (50 tunnels)
• Internal voice mail (12 hours, eight ports)
• Door relay
• Auto attendant (multilevel eight ports)
• Analog, T1, or PRI trunks
• Integrated (voice/data) T1 or PRI trunks
• Broadband Ethernet WAN interface
• Recognizable Command Line Interface (CLI) eliminates retraining
• User-friendly Web-based Graphical User Interface (GUI)
• Feature-rich ADTRAN Operating System (AOS)

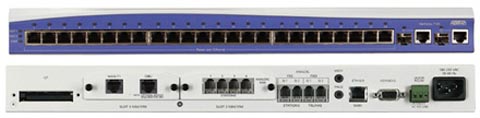

• 1U, 19-inch rackmount metal enclosure
• 1.75-inch H x 17.25-inch W x 9.25-inch D
• Auto-ranging power (100 to 250 VAC, 50 to 60 Hz, 450 W)
• RoHS compliant
