V.24 MLC 8000 to Channel Bank SRU Card Cable

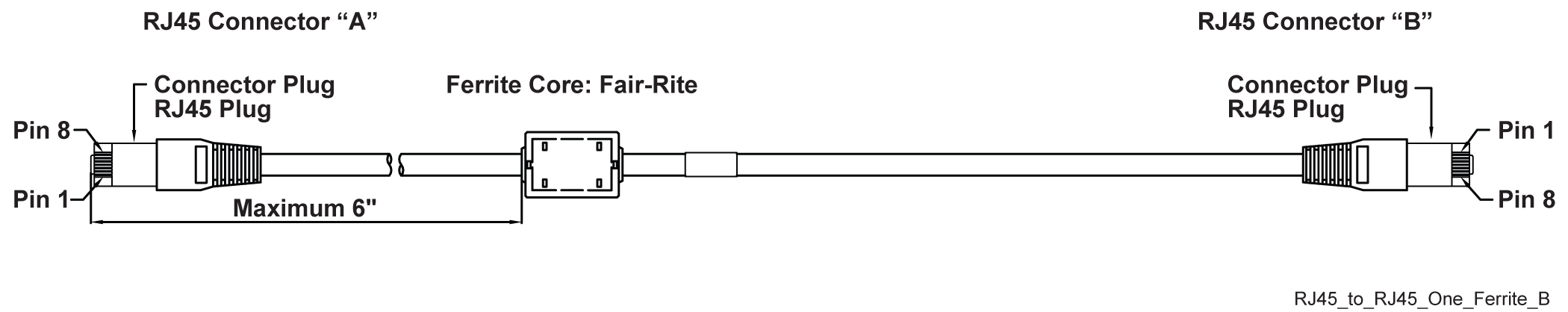

This cable has a ferrite core, Fair-Rite® (part number: FHN9045A).
| End A, | End B, | |||
|---|---|---|---|---|
| MLC 8000 | Channel Bank | |||
| Pin No. | Signal | Wire Color | Pin No. | Signal |
| 1 | DATA_TX | White/Orange | 6 | Tx Data |
| 2 | DATA_RX | Orange | 5 | Rx Data |
| 3 | RTS | White/Green | 8 | RTS |
| 4 | CTS | Blue | 7 | CTS |
| 5 | +5V | White/Blue | Not Connected | Not Connected |
| 6 | RXCLK | Green | 1 | RCLK |
| 7 | TXCLK | White/Brown | 3 | TCLK |
| 8 | DGND | Brown | 4 | GND |
