Cable Requirements for a Console that Detects Audio Received from the Comparator through VOX Detection

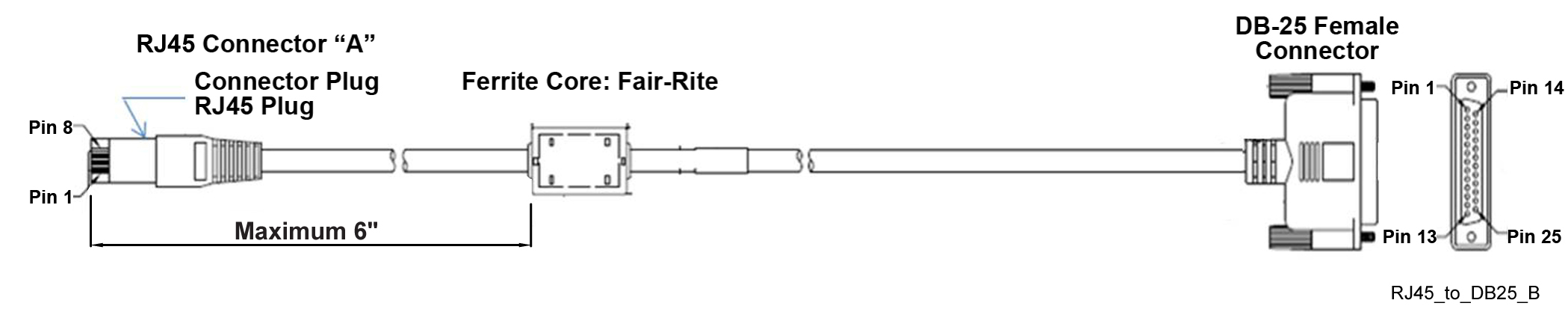

The following figure shows the cable from the MLC 8000 to the MC2500 analog console. This cable has a ferrite core, Fair-Rite^® (part number: FHN9045A).

4W MLC 8000 (Analog Comparator) to MC2500 Analog Console Cable

4W MLC 8000 Port 1 to MC2500 P1 Audio/Accessory 25-PIN Analog Connector – TRC
VGU			MC2500-P1
Pin No.	Signal	Wire Color	Pin No.	Signal
1	Audio Out+	White/Orange	12	+RX_Port1
2	Audio Out-	Orange	25	-RX_Port1
3	Audio In +	White/Blue	11	+TX_Port1
4	Audio In -	Blue	24	-TX_Port1
5	Channel Active	White/Green	Not Connected	Not Connected
6	PTT from Console	Brown	Not Connected	Not Connected
7	5V	Green	Not Connected	Not Connected
8	VGND	White/Brown	Not Connected	Not Connected
