4W MLC 8000 to GTR 8000 Cable (IP Simulcast) for DLN6821A Cable Assembly Connection
4W MLC 8000 to GTR 8000 Cable (IP Simulcast)
4W MLC 8000 to GTR 8000 Cable (IP Simulcast) for DLN6821A Cable Assembly Connection

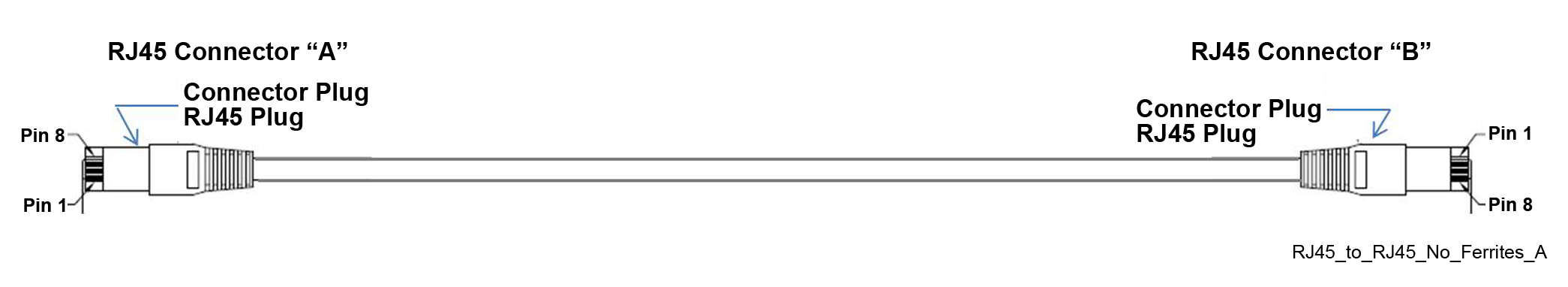

| End A, MLC 8000 Side of RJ45 Cable |
|
- End B, RJ45 on GTR 8000 Side
- (Connects to DLN6821A Using Adapter 58009256017)
|
| Pin No. |
Signal |
Wire Color |
Pin No. |
Signal |
| 1 |
Audio Out+ |
White/Orange |
1 |
Gen TX Data + |
| 2 |
Audio Out- |
Orange |
2 |
Gen TX Data - |
| 3 |
Audio In + |
White/Blue |
5 |
Line 2+ |
| 4 |
Audio In - |
Blue |
4 |
Line 2- |
| 5 |
PTT |
White/Green |
3 |
Aux In 5 (Ext PTT-) |
| 6 |
COR |
Brown |
Not Connected |
Not Connected |
| 7 |
5V |
Green |
Not Connected |
Not Connected |
| 8 |
VGND |
White/Brown |
7 |
GND Station Ground |
