Test Connections

The specific connectors and cables needed vary depending upon your test equipment and the optimization receiver being used. The information is generic and can be used as a guideline for the needed connections.

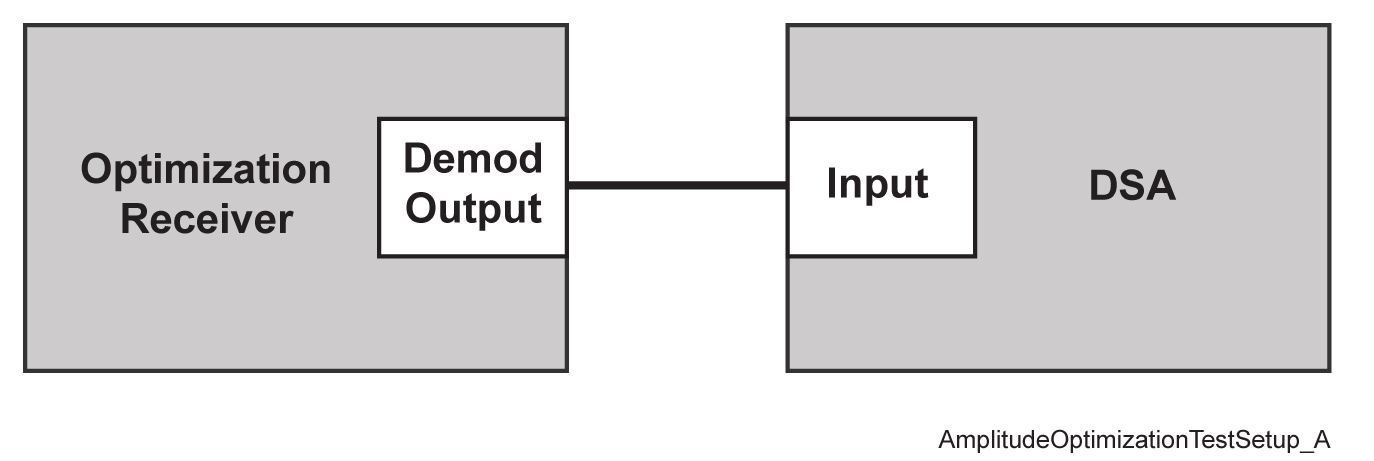

Set up the test equipment as shown in the figure, which represents the relationship between the various test equipment. Connect the test antenna to the RF input of the optimization receiver. The audio output of the optimization receiver is connected to the DSA input.
