MLC 8000 to SDM3000 RTU Cable

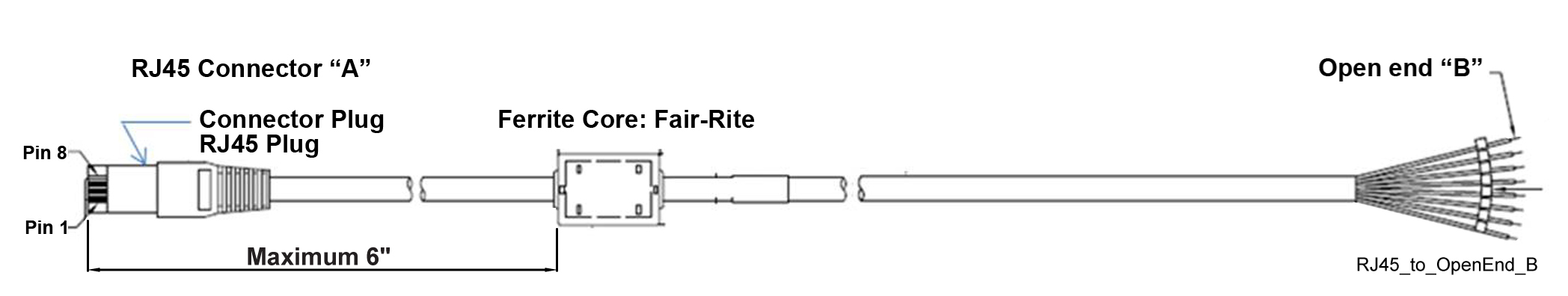

This cable has a ferrite core, Fair-Rite® (part number: FHN9045A).
NoteUse the open-ended cable with the punch block.
| End A, MLC 8000 (RJ45) | End B, SDM3000 RTU | |||
|---|---|---|---|---|
| Pin No. | Signal | Definition | I/O | Signal |
| 1 | 5V | Unit Present | Output | Analog Input |
| 2 | VIP1 | N/A | Output | Digital Input 1 |
| 3 | VIP2 | GPS in Simulcast mode | Output | Digital Input 2 |
| 4 | VIP3 | Communication | Output | Digital Input 3 |
| 5 | VIP4 | Ports | Output | Digital Input 4 |
| 6 | VIP5 | Launch time in Simulcast mode | Output | Digital Input 5 |
| 7 | VIP6 | Reset | Input | Digital Output |
| 8 | GND | |||
