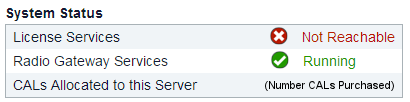

Indicates a connection to the Licensing Server. A status of Reachable does not indicate that the WAVE 3000 Server is correctly licensed. If the WAVE 3000 Server’s ID is not present in the Licensing Server, an error is displayed in the System > Manage CALs page. Connection to the Licensing Server occurs over port 80. If this port is blocked, then License Services indicates Not Reachable.
The WAVE 3000 Server continues to operate with existing licenses if the License Server is not reachable, but you cannot add new EIDs or distribute CALs from existing EIDs.
The WAVE 3000 Server continues to operate with existing licenses if the License Server is not reachable, but you cannot add new EIDs or distribute CALs from existing EIDs.

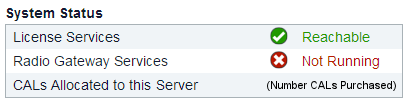

Indicates the status of the WAVE 3000 Server software services. Capacity Plus Radio Gateway Services should always display Running. If it displays Not Running, then the WAVE 3000 Server software has encountered an error.
To restore Plus Radio Gateway Services, click the Maintenance tab, click Restart WAVE Server, and then click the Restart button.
To restore Plus Radio Gateway Services, click the Maintenance tab, click Restart WAVE Server, and then click the Restart button.
