Adding CALs from an Existing EID

Internet access is required to add CALs from an existing EID.

To add CALs from an existing EID

1.	Sign in to the WAVE 3000 Server system using the current admin password.

2.	Click the Setup tab.

3.	Click the Manage Client Access Licenses (CALs) link. The Manage Client Access Licenses (CALs) page opens and displays a list of all EIDs currently associated with this WAVE 3000 Server.

Note:

The system automatically attempts to connect with the licensing server. If it cannot connect, a notice appears under the page title.

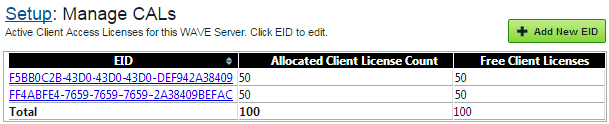

4.	Click the link of the EID containing the CALs to add to this WAVE 3000 Server. The Setup: Manage CALs: Edit CALs page opens.

5.	In the Add Unallocated Licenses list, select the number of CALs to add.

6.	Click the Add Licenses button.

7.	Click Commit Changes.
