Adding a New License and Distributing CALs

Internet access is required to add new EIDs and distribute CALs. You can obtain EIDs from Motorola by calling Support and requesting an new EID.

To add an EID and distribute CALs

1.	Sign in to the WAVE 3000 Server system using the current administrator password.

2.	Click the Setup tab.

3.	Click the Manage Client Access Licenses link. The Manage Client Access Licenses (CALs) page opens and displays a list of all EIDs currently associated with this WAVE 3000 Server.

Note:

The system automatically attempts to connect with the licensing server. If it cannot connect, a notice appears under the page title.

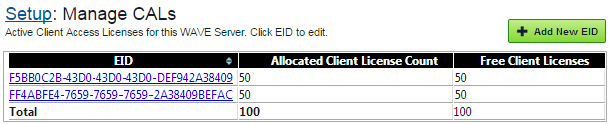

4.	Click the Add New EID button. The Setup: Manage CALs page opens.

5.	In the EID field, enter the number of the EID to add.

6.	In the Allocated client licenses field, enter the number of CALs to add from this EID to this WAVE 3000 Server.

Note:

No more than 500 CALs may be associated with a WAVE 3000 Server unit.

7.	Click the Allocate Licenses button. The WAVE 3000 Server updates the licensing server, and the Manage Client Access Licenses (CALs) page opens, displaying the new EID in the list and the number of CALs now associated with this WAVE 3000 Server.

8.	Click Commit Changes.
