Analog-Only IP-Based Simulcast Voting Subsystem Equipment Cabling

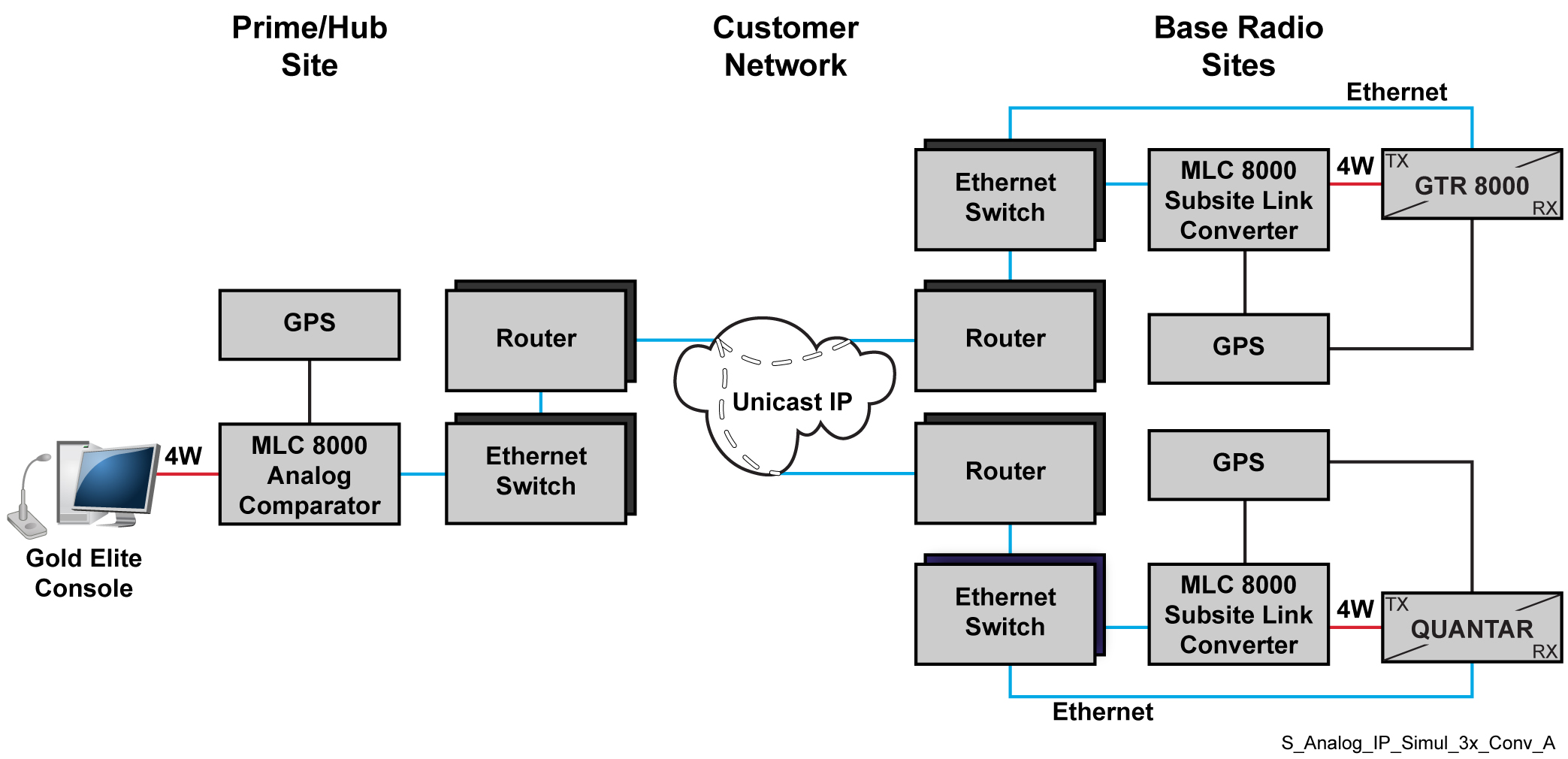

This section provides a high-level subsystem diagram and equipment cabling tables from the MLC 8000 device to other system devices. A port description table lists the system devices and refers to the device documentation for more information.
ImportantHigh-level diagrams are provided as examples only and are not to be used for system planning purposes. “GPS” in the diagram refers to a Simulcast Site Reference device. The GPS should be connected to the MLC 8000 Subsite Link Converter only if it is connected to an Rx/Tx or Tx only BR.
NoteThis table provides part numbers for cables that are orderable from Motorola Solutions. Create the remaining cables using the provided pinout tables. See
MLC 8000 Radio Ports Cabling.
| From MLC 8000 Analog Comparator | To Destination device: | |||
|---|---|---|---|---|
| Port | Connector Type | Device | Connector Type | Description |
| REF | QMA | Simulcast Site Reference device | BNC | GPS connector for the reference signal. REF signal cable (FKN8718) T-BNC BNC-to-BNC COAX cable |
| External LAN PoE | RJ45 | LAN Switch | RJ45 | RJ45-to-RJ45 one-to-one cable |
| VIP | RJ45 | SDM3000 RTU | I/O Wiring Punch Block | MLC 8000 to SDM3000 RTU Cable |
| R1 4W-E&M | RJ45 | MC2500 | DB25 | 4-Wire MLC 8000 to MC2500 Analog Console Cable |
| From MLC 8000 Subsite Link Converter (Subsite) | To Destination device: | |||
| Port | Connector Type | Device | Connector Type | Description |
| REF | QMA | Simulcast Site Reference device | BNC | GPS connector for the reference signal. REF signal cable (FKN8718) T-BNC BNC-to-BNC COAX cable |
| External LAN PoE | RJ45 | LAN Switch | RJ45 | RJ45-to-RJ45 one-to-one cable |
| VIP | RJ45 | SDM3000 RTU | I/O Wiring Punch Block | MLC 8000 to SDM3000 RTU Cable |
| R14W-E&M | RJ45 | GTR 8000 Base Radio or GPW 8000, 4W Gen-Tx
NoteIn a GPW Satellite Receiver, 2–wires are always OK.
|
|
4W MLC 8000 to GTR 8000 Cable (IP Simulcast) |
NoteThe GPS should be connected to the MLC 8000 Subsite Link Converter only if it is connected to an Rx/Tx or Tx only BR.
Port Descriptions for Analog-Only IP-Based Simulcast Voting Subsystem
| Device | Manual |
|---|---|
| MLC 8000 | See “MLC 8000 Ports” in the MLC 8000 Comparator Feature Guide. |
| Simulcast Site Reference device | See the manufacturer’s manual. |
| Ethernet Switch | See the manufacturer’s manual. |
| MC2500 analog console | See the MC2500™ Multi-channel Deskset L3217 Operator and Installation Manual (6880309L14). |
| SDM3000 RTU | See the Installation chapter “Connecting I/Os with Punch Blocks” sub-section and Appendix C “Pin Assignments” and “Punch Block Terminal Block Contacts” in the SDM3000 Site Device Manager User Guide. |
| GTR 8000 Base Radio | See “Transceiver Ports – Front” in the RF Site Technician Reference Guide |
