System Components

The WAVE 3000 Server can only be used with a supported Motorola radio system. Supported systems include Connect Plus, Capacity Plus, and Link Capacity Plus. This guide is specifically for Connect Plus systems.

Each WAVE 3000 Server requires its own dedicated XRT 9000/9100 Gateway for voice communications. The only exception where an XRT 9000/9100 is not used is when the existing XRT 9000/9100 is only used for call logging applications like GW3-TRBO (Genesis). If a customer has an XRT 9000/9100 used for voice communications to a console, then a separate XRT 9000/9100 (with Talk Path IDs) is needed for the WAVE 3000 Server.

XRC 9000 Controller (Hardware)

The XRC 9000 is the Connect Plus controller. It manages the site resources on MOTOTRBO Connect Plus digital trunking systems.

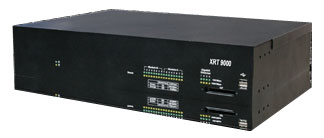

XRT 9000/9100 Gateway (Hardware)

The XRT 9000/9100 is the Connect Plus gateway and responsible for mapping WAVE Mobile Communicator users and Connect Plus users by ID. It can handle up to 100 users and/or Talk Groups, and can manage up to 30 simultaneous calls. Up to 5 XRT Gateways can be added to a Connect Plus system. The current version of the WAVE 3000 Server limits XRT connections to one WAVE 3000 Server per XRT.

During configuration, the XRT must point to the IP address for the host machine, and the IP address of the XRC module.

WAVE 3000 Server (Hardware)

The WAVE 3000 Server provides the capability to connect cellular phone clients with the ConnectPlus radio system.

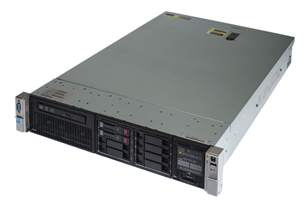

The WAVE 3000 Server unit is installed on a HP DL380 G5 blade server running a Single Socket - 8 Core 2.0 Ghz E5-2630 V2 processor. It comes with 32G Memory and (2) Mirrored 500GB SATA Disks.

Browser for Administrator Access (Software)

Any standard browser can be used. Tested supported browsers include Internet Explorer, Chrome, and Firefox.
