Run the MOTOTRBO Connect Plus XRT 9000/9100 Configuration Tool application through the Start menu on a PC connected to the same network as the XRT 9000/9100. Select Start, choose All Programs, then Motorola Solutions, and then select MOTOTRBO Connect Plus XRT 9000 (or XRT 9100) Configuration Tool.
|
Note:
|
Microsoft .NET Framework Requirement: A PC can (and frequently does) have multiple versions of Microsoft .NET Framework. MOTOTRBO Connect Plus XRT 9000/9100 Configuration Tool software for Connect Plus System Release 1.3 (or later) requires the PC to have .NET Framework version 4.0. To see what versions are on your PC, check Control Panel > Add or Remove Programs.
|
|
2.
|
From the Start menu, select All Programs > Motorola Solutions and then click MOTOTRBO Connect Plus XRT 9000/9100 Configuration Tool.
|
|
3.
|

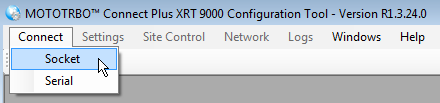

On the Connect menu, click Socket if you are connecting remotely, or Serial if you are connecting over a direct serial cable connection to the XRT.
 |
|
4.
|
Enter the Host IP address to your XRT 9000/9100 Gateway. Leave the Port field blank if you do not know the exact port to use. Port 4445 is the standard default port.
 |
