Configuring Connect Plus Network Connections

After setting the Radio System Interface type to Connect Plus, you must specify how the WAVE 3000 Server can connect to the Connect Plus radio system. You must also specify Talk Group and Subscriber port ranges, timers, privacy key (optional), and the Time Zone for the WAVE 3000 Server.

Use this section to complete configuration of all required Connect Plus networking information.

To configure Connect Plus networking

1.	Click the Setup tab.

2.	Click the Radio System Interface link. The Setup: Radio System Interface page opens.

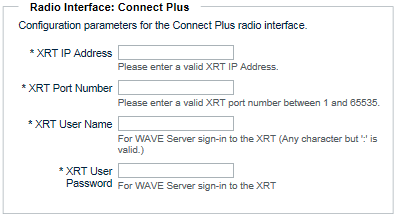

3.	In the Radio Interface : Connect Plus section, make the following modifications:

A.

XRT IP Address Specify the IP address of the XRT 9000/9100 module this WAVE 3000 Server uses to connect with radios. In the XRT 9000/9100, click Network > Settings and use the IP Address listed there to populate this field with the correct address. The default address is 192.168.0.1. Do not use an address range between 172.31.254.0 through 172.31.254.255. This address range is reserved for internal WAVE 3000 Server connections.

B.

XRT Port Number Specify the Port of the XRT 9000/9100 module this WAVE 3000 Server uses to connect with radios. In the XRT 9000/9100, click Settings > Configuration and use the Client TCP port listed there to populate this field with the correct port. The default port is 10001. This port must be opened if a firewall exists between the WAVE 3000 Server and the XRT 9000/9100 Gateway.

C.	XRT Username Specify the Username the WAVE 3000 Server uses to connect with the XRT 9000/9100. For instructions see Adding and Configuring the XRT 9000/9100 WAVE 3000 Server User

D.	XRT User Password Specify the user password the WAVE 3000 Server uses to connect with the XRT 9000/9100 Gateway. For instructions see Adding and Configuring the XRT 9000/9100 WAVE 3000 Server User

4.	In the Anonymous User section, make the following modification:

In the Anonymous User field, enter a value to identify anonymous WAVE users to the Connect Plus Radio system. The WAVE 3000 Server uses the Anonymous User ID to identify all WAVE users without a Subscriber ID to Connect Plus radios. Ensure this ID is a number unique to WAVE and the radio system.

5.	In the Time Zone section, make the following modification:

In the WAVE System Time Zone field, specify the time zone used by the WAVE 3000 when generating logs and reports.

6.	Click the Save button.

To continue setup, follow the instructions in Configuring WAVE 3000 Network Connections
