Configuring WAVE 3000 Network Connections

The Network Adapter page allows the configuration of WAVE 3000 Server IP addresses and ports.

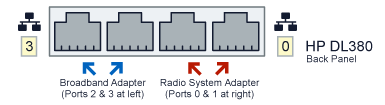

The WAVE 3000 Server uses two Network Interface Controllers identified on the back of the DL380 as ports 2 & 3, and ports 0 &1. The following diagram depicts the physical orientation of the ports.

Use the instructions in this section to configure how the WAVE 3000 Server communicates with the Connect Plus radio system network (the Radio System Adapter section) and the internet (the Broadband Adapter section).

To configure the WAVE 3000 Radio System Adapter

The following procedure sets the IP addresses on the WAVE 3000 Server machine for connection to the Connect Plus radio network. Ensure the addresses are appropriate for the network.

1.	Click the Setup tab.

2.	Click the Network Adapter link. The Setup: Network Adapter page opens.

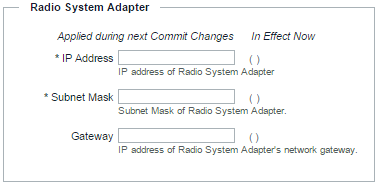

3.	In the Radio System Adapter section, make the following modifications:

Note:

The Radio System Adapter resides on the WAVE 3000 Server and provides a connection point for traffic incoming from the Connect Plus Radio System.

A.	In IP Address, enter the IP address of the WAVE 3000 Radio System Adapter. This address must be accessible to the host network of the Connect Plus Radio System. This is NOT the Connect Plus XRT 9000/9100 address. It is a unique address on the same network.

B.	In Subnet Mask, enter the mask for the WAVE 3000 Radio System Adapter.

C.	In Gateway, enter the IP address of the WAVE 3000 Radio System network gateway.

To configure the WAVE 3000 Broadband Adapter

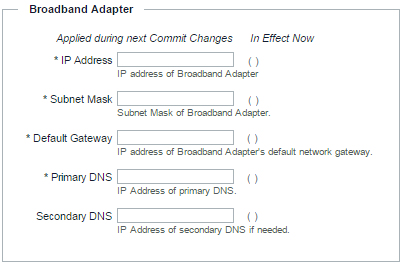

1.	In the Broadband Adapter section, make the following modifications:

Note:

The Broadband Adapter section configures the WAVE 3000 Server for connection to the internet. Ensure the configuration values you apply to this section are appropriate for internet access to allow connection to the licensing server.

A.

In IP Address, enter the IP address of the Broadband Adapter. Once you change this address, you will be logged-out of the WAVE 3000 Server, and must use the new address to access the WAVE 3000 Server. Do not use an address range between 172.31.254.0 through 172.31.254.255. This address range is reserved for internal WAVE 3000 Server connections.

B.	In Subnet Mask, enter the subnet mask of the Broadband Adapter.

C.	In Default Gateway, enter the IP address of the Broadband Adapter’s default network gateway.

D.	In Primary DNS, enter the IP address of the Broadband Adapter’s primary DNS.

E.	In Secondary DNS, optionally enter the IP address of the Broadband Adapter’s secondary DNS.

2.	Click the Save button.

To continue setup, follow the instructions in Configuring Broadband Clients
