Configuring Broadband Clients

Broadband clients are installed from the appropriate applications store for the device. For information about setup and operation of the WAVE Mobile Communicator, see WAVE Client Information

The WAVE 3000 Server requires the information covered in this section to allow broadband clients to connect with the WAVE 3000 Server.

To set WAVE client app connections and timeouts

1.	Click the Setup tab.

2.	Click the WAVE Mobile Communicator link. The Setup: Broadband Clients page opens.

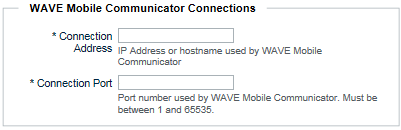

3.	In the WAVE Mobile Communicator Connections section, make the following modifications:

A.	In Connection Address, enter the IP address or the host name of the server used by WAVE Mobile Communicator clients to connect to the WAVE 3000 Server. This is the address WAVE users must enter when they sign in.

B.	In Connection Port, enter the port number used by WAVE clients to connect with the WAVE 3000 Server. Valid values include 1-65535.

4.	In the WAVE Mobile Communicator Timeouts section, make the following modification.

In Private Call Inactivity, specify the call timeout in seconds. This applies to all Private Calls between broadband-to-broadband or radio-to-broadband. If no communication occurs over this duration during a Private Call, then the broadband client times-out and disconnects the Private Call Session.

5.	Click the Save button.

To continue setup, follow the instructions in Adding and Allocating Licenses.
