Cabling MLC 8000 to SDM3000 RTU

The quantity of required MOSCAD NFM cables and I/O Wiring Punch Blocks can be determined from the number of digital inputs and outputs in the following tables:

• MLC 8000 Link Converter and MOSCAD NFM I/O Monitoring Indications (IP Simulcast)
• MLC 8000 Link Converter MOSCAD NFM I/O Monitoring Indications (Non IP Simulcast)
• MLC 8000 Analog Comparator and MOSCAD NFM I/O Monitoring Indications (IP Simulcast)
• MLC 8000 Analog Comparator and MOSCAD NFM I/O Monitoring Indications (Non IP Simulcast)

SDM3000 RTU Ports

See MLC 8000 Ports and LEDs for the MLC 8000 port information.

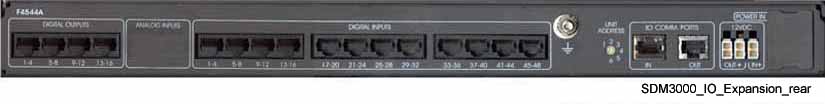

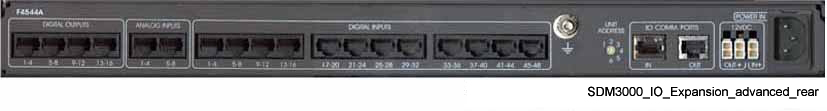

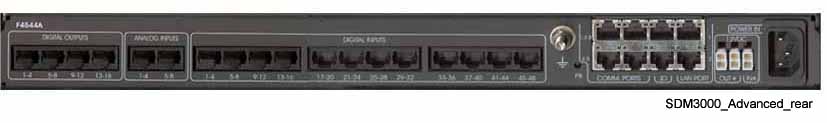

The following figures show the SDM3000 RTU ports where the MLC 8000 connects using an MLC 8000 to MOSCAD NFM Cable. See MLC 8000 Radio Ports Cabling.

Refer to “Punch Block Terminal Block Contacts” in the SDM3000 Site Device Manager User Guide for a figure showing the I/O Wiring Punch Block.
